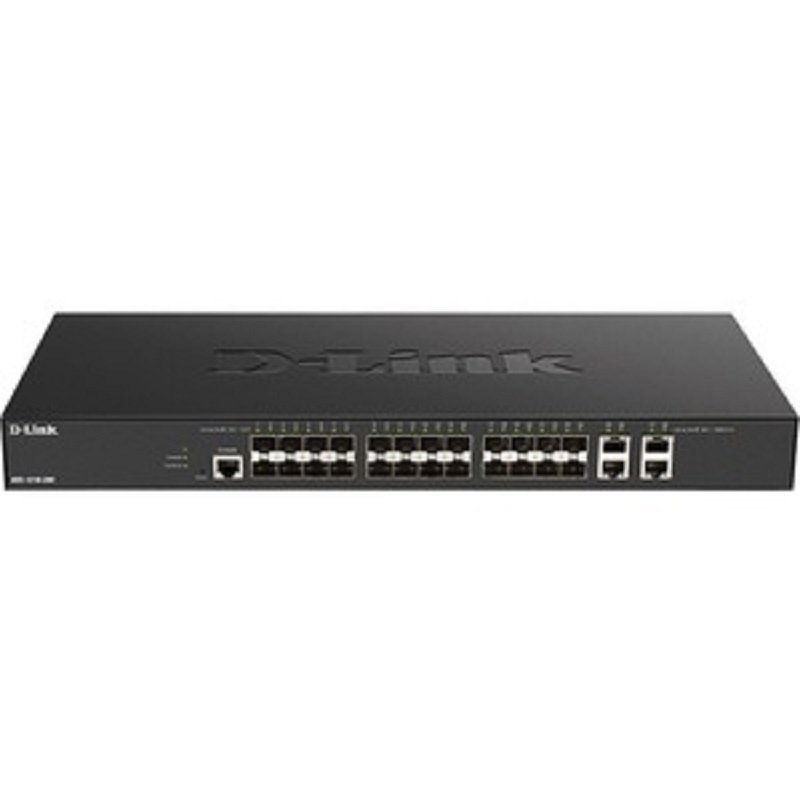

D-Link DXS-1210-28S - 4 Ports Manageable Ethernet Switch

QuickFind: 1139580 Mfr part code: DXS-1210-28S
  • 3 Layer Supported
  • Modular
  • Optical Fiber, Twisted Pair
  • Desktop

Product Description

D-Link DXS-1210-28S - 4 Ports Manageable Ethernet Switch

D-Link DXS-1210-28S 4 Ports Manageable Ethernet Switch - 3 Layer Supported - Modular - Optical Fiber, Twisted Pair - Desktop
10-Gigabit Smart Managed switches with optional auto-detection to eliminate surveillance and VoIP latency, and optional SFP+ or SFP28 ports for 10G/25G expandable network, designed for scalability
  • Range of copper and fiber port combinations for deployment flexibility
  • Effortlessly eliminate surveillance and VoIP latency (select models only)
  • Layer 2 management and security, with Layer 3 Lite features
  • Up to 32K MAC address table size to connect more clients
  • Cable Diagnostics & Loopback Detection streamlines network operation

The D-Link DXS-1210 Series conveniently offers a range of 10-Gigabit copper and fiber port combinations to cost-effectively alleviate network congestion. Select models are equipped with SFP+ or SFP28 ports for 10G/25G expandable network designed for scalability and can auto-detect surveillance and voice data to ensure uninterrupted video footage and jitter-free VoIP calls.

10-Gigabit Ports
10G connections for low latency and high bandwidth environments

10G/ 25G SFP28 Ports
10G/25G expandable network designed for scalability (DXS-1210-28T only)

User Friendly Web GUI
Multi-language Web GUI makes management easy for global deployments

Energy Saving Technology
By incorporating D-Link Green technology, this series of switches is capable of saving power without sacrificing operational performance or functionality.
Layer 2 Features
Includes port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP)
Layer 3 Lite Features
Such as IP interfaces, ARP, IPv6 Neighbor Discovery (ND), Default Routing and Static Routing
Quality of Service
Automatically detects surveillance and VoIP data to ensure uninterrupted transmission (select models only)
Network Security
D-Link's innovative Safeguard Engine™ protects the network against traffic flooding caused by virus and worm infections

Alleviate Network Congestion
Add 10-Gigabit Ethernet connectivity with these affordable high-performance switches. Designed for deployment in small to medium-sized business (SMB) core networks and powerful enough for enterprise aggregation applications.

Simple & Cost-Effective Migration Up to 100G
The DXS-1210-28T model features 24 10GBase-T and four SFP28 fiber ports (10G/25G) to provide great scalability, highly efficient network and expandable capacity

Convenient Layer 2 & Layer 3 Lite Configurability
The DXS-1210 Series can be deployed as a Layer 2 aggregation switch with features such as port mirroring, STP, and LACP. When implemented as a Layer 3 Lite core switch, IP interfaces, ARP, IPv6 ND, Default Routing, and Static Routing can be applied for efficient routing applications.

An Added Line of Defense Against Attacks
The DXS-1210 Series defends your network with D-Link's innovative Safeguard Engine™ to neutralize threats such as malicious network flooding attacks, ARP spoofing, and bogus DHCP IP addressing. The DXS-1210 Series supports 802.1X port-based and host-based authentication, allowing the network to be authenticated through external RADIUS servers.

Technical Specification

D-Link DXS-1210-28S - 4 Ports Manageable Ethernet Switch


Device Type Switch - 28 ports - smart
Enclosure Type Rack-mountable
Subtype 10 Gigabit Ethernet
Ports 24 x 10GBase-X + 4 x 10Gb Ethernet
Performance Switching capacity: 560 Gbps ¦ Forwarding performance: 416,64 Mpps
Capacity VLAN IDs: 4094 ¦ IPv4 routes (static): 128 ¦ IPv6 routes (static): 64 ¦ Static ARP entries: 384
MAC Address Table Size 32000 entries
Jumbo Frame Support 12288 bytes
Routing Protocol Static IPv4 routing, static IPv6 routing
Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
Encryption Algorithm TLS 1.0, PEAP, TTLS, TLS 1.1, TLS 1.2
Authentication Method RADIUS, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features Flow control, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), Safeguard Engine, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, Deficit Weighted Round Robin (DWRR), LLDP support, DHCP relay, Port Security, IP-MAC binding, port based access control, DHCP client, Dynamic VLAN Support (GVRP), static routing, Class of Service (CoS), TFTP client, 4MB packet buffer, Type of Service (ToS), Ethernet Ring Protection Switching (ERPS), system log, IP source guard, Deficit Round Robin (DRR), host based access control, Smart Fans
Compliant Standards IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3p, IEEE 802.3an, IEEE 802.3az
Processor X ARM Cortex-A9 + Cortex-R5
RAM 256 MB
Flash Memory 64 MB
Status Indicators Power, fan, link/activity/speed

Expansion / Connectivity

Interfaces 24 x 10GBase-X SFP+ ¦ 4 x 10GBase-T RJ-45 ¦ 1 x console RJ-45


Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 87.7 Watt
Power Consumption Stand by 27.6 Watt


Included Accessories 4 rubber feet, 2 x 19" mounting brackets
Cables Included 1 x console cable
Rack Mounting Kit Included
MTBF 574 720 hours
Compliant Standards FCC Class A certified, UL, BSMI, CB, IC, VCCI Class A

Dimensions & Weight

Width 44.1 cm
Depth 20.95 cm
Height 4.4 cm
Weight 3.27 kg

Environmental Parameters

Min Operating Temperature -5 °C
Max Operating Temperature 50 °C
Humidity Range Operating 0 - 95% (non-condensing)
Min Storage Temperature -20 °C
Max Storage Temperature 70 °C
Humidity Range Storage 0 - 95% (non-condensing)
