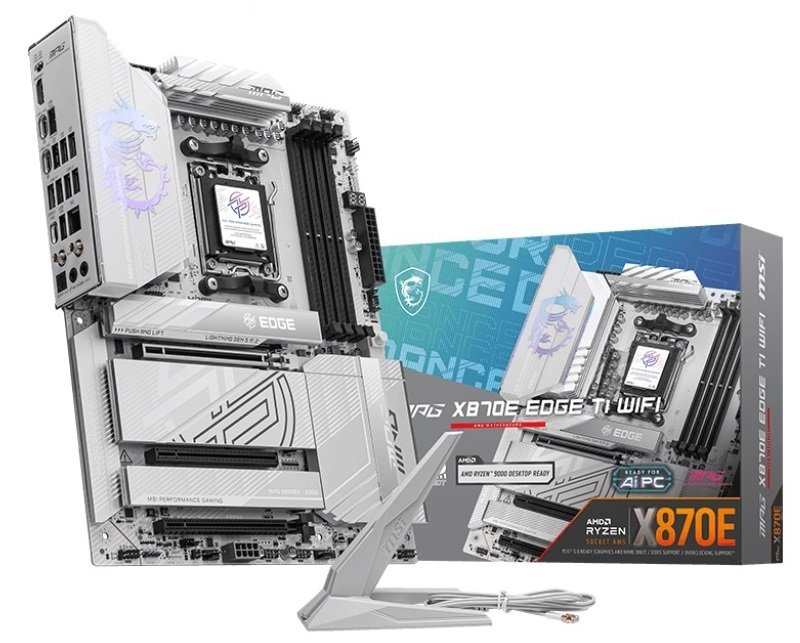

MSI AMD MPG X870E EDGE TI WIFI AM5 DDR5 ATX Gaming Motherboard

Name: MSI AMD MPG X870E EDGE TI WIFI AM5 DDR5 ATX Gaming Motherboard
Brand: MSI
SKU: 2480766
Price: 349.98 GBP
Availability: InStock
Rating: 5 (6 reviews)

QuickFind: 2480766 SKU: MPG X870E EDGE TI WIFI

Form: ATX
Socket: AM5
Chipset: AMD X870
Memory Type: DDR5
Warranty: 3 years

MSI AMD MPG X870E EDGE TI WIFI AM5 DDR5 ATX Gaming Motherboard

Product Description

MSI AMD MPG X870E EDGE TI WIFI AM5 DDR5 ATX Gaming Motherboard

MPG X870E EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, USB4, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme X870E ATX motherboard for AMD Ryzen™ 9000 series processors.

Key Features

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Technical Specification

MSI AMD MPG X870E EDGE TI WIFI AM5 DDR5 ATX Gaming Motherboard

General
Product Type	Motherboard - ATX
Chipset Type	AMD X870E
Processor Socket	Socket AM5
Max Processors Qty	1
Compatible Processors	(supports Ryzen 7000/8000/9000 Series)
Supported RAM
Max Size	256 GB
Technology	DDR5
Bus Clock	2400 MHz, 2400 MHz (O.C.), 2600 MHz, 2600 MHz (O.C.), 3200 MHz (O.C.), 4200 MHz (O.C.)
Supported RAM Integrity Check	Non-ECC
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture
Audio
Type	HD Audio (8-channel)
Audio Codec	Realtek ALC4080
Compliant Standards	High Definition Audio
LAN
Network Controller	Realtek RTL8126
Network Interfaces	5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Expansion / Connectivity
Expansion Slots	1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x PCIe 4.0 x4 ¦ 3 x M.2 socket (2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2280/22110 M.2 Key M slot) ¦ 1 x M.2 socket (Key E)
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces	1 x HDMI ¦ 4 x USB 2.0 ¦ 2 x USB4 ¦ 1 x USB-C 3.2 Gen 2 ¦ 5 x USB 3.2 Gen 2 ¦ 1 x LAN (5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x SPDIF out ¦ 2 x aerial
Internal Interfaces	4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 1 x audio - header ¦ 1 x SPI - header
Power Connectors	24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector
Features
Hardware Features	14+2+1 Phase Power Design, MSI AI Engine, Frozr AI Cooling, Extended Heatsink Design, Dr.MOS MOSFET, double side M.2 Shield FROZR, M.2 Shield FROZR, Enlarged Chipset Heatsink, pre-mounted I/O shield, EZ M.2 Sheild FROZR II, EZ Conn-Design, EZ PCIe Release, MSI Steel Armor II, 8 Layer PCB, 2oz Copper PCB, DIY Friendly Design, Clear CMOS Button, flash BIOS button, EZ Debug LED, 2-Digit Debug Code LED, overvoltage protection, MSI Memory Boost, transient voltage suppressors, overcurrent protection, MSI Audio Boost 5, MSI Mystic Light
Miscellaneous
Included Accessories	EZ Wi-Fi antenna, M.2 plate screw, EZ M.2 clip II remover, USB drive, 1 to 3 EZ Conn-Cable, EZ front panel cable
Cables Included	2 x Serial ATA cable
Software Included	MSI Center, AIDA64 Extreme - MSI Edition, Norton 360 Deluxe (60 days trial)
Width	30.48 cm
Depth	24.384 cm
Package Details	Box
