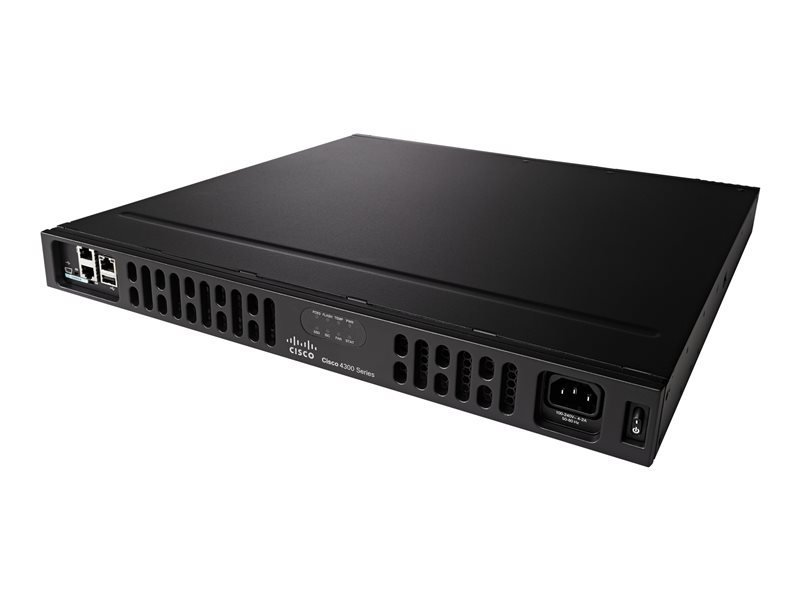

Cisco Integrated Services Router 4331 - Security Bundle - Router - Rack-mountable 1U

QuickFind: 666948 Mfr part code: ISR4331-SEC/K9
  • Security Bundle
  • Router
  • GigE
  • WAN ports: 3
  • Rack-mountable

Product Description

Cisco Integrated Services Router 4331 - Security Bundle - Router - Rack-mountable 1U

  • Lower WAN expenditures
  • Superior and secure user application experiences
  • IT consolidation, space savings, and improved total cost of ownership (TCO)
  • Business continuity and increased resiliency
  • Lower telephony costs with VoIP and rich media experiences
  • Embedded IP security (IPsec) VPN hardware acceleration
  • Integrated Gigabit Ethernet ports
  • USB-based console access
The Cisco 4000 family Integrated Services Router (ISR) revolutionizes WAN communications in the enterprise branch. With new levels of built-in intelligent network capabilities and convergence,it specifically addresses the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links,including Multiprotocol Label Switching (MPLS) VPNs and the Internet.
  • Cisco Intelligent WAN (IWAN)
  • Cisco IWAN is a set of intelligent software services that allow you to reliably and securely connect users,devices,and branch office locations across a diverse set of WAN transport links. IWAN-enabled routers like the ISR 4000 dynamically route traffic across the "best"link based on up-to-the-minute application and network conditions for great application experiences. You get tight control over application performance,bandwidth usage,data privacy,and availability of your WAN links - control that you need as your branches conduct greater volumes of mission-critical business.
  • Cisco converged branch infrastructure
  • The Cisco 4000 Series ISRs consolidate many must-have IT functions,including network,compute,and storage resources. The high-performance,integrated routers run multiple concurrent IWAN services,including encryption,traffic management,and WAN optimization,without slowing your data throughput. And you can activate services on demand through a simple licensing change.

Technical Specification

Cisco Integrated Services Router 4331 - Security Bundle - Router - Rack-mountable 1U

General

Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, GB 4943, VCCI V-3, EN 61000, KN22, KN24, CNS 13438, EN 55022 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1
Device Type Router
Enclosure Type Rack-mountable - modular - 1U
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Performance Aggregate throughput: 100 Mbps
Network / Transport Protocol IPSec, PPPoE, DHCP
Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast
Remote Management Protocol SNMP, RMON
Features Firewall protection, VPN support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), wall mountable, IPSec Virtual Private Network (VPN), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), RADIUS support, NetFlow, IPFIX
RAM 4 GB (installed) / 16 GB (max) - DDR3 SDRAM
Flash Memory 4 GB (installed) / 16 GB (max)

Expansion / Connectivity

Interfaces WAN / LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Serial: 1 x console - RJ-45 ¦ Management: 1 x console - mini-USB Type B ¦ Serial: 1 x auxiliary - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ 2 x SFP (mini-GBIC) ¦ Management: 1 x RJ-45
Expansion Slots 2 (total) / 2 (free) x NIM ¦ 1 (total) / 1 (free) x ISC ¦ 1 (total) / 1 (free) x Enhanced Service Module (SM-X) ¦ 2 (total) / 0 (free) x DIMM 240-pin

Power

Power Device Internal power supply - 250 Watt
Installed Qty 1 (installed) / 1 (max)
Voltage Required AC 120/230 V (50/60 Hz)

Miscellaneous

Rack Mounting Kit Included

Software / System Requirements

OS Provided Cisco IOS Security
Software Included Cisco IOS IP Base

Dimensions & Weight

Width 43.815 cm
Depth 43.815 cm
Height 4.455 cm
Weight 5 kg

Manufacturer Warranty

Service & Support Limited warranty - advance parts replacement - 90 days - response time: 10 days

Environmental Parameters

Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 5 - 85%
