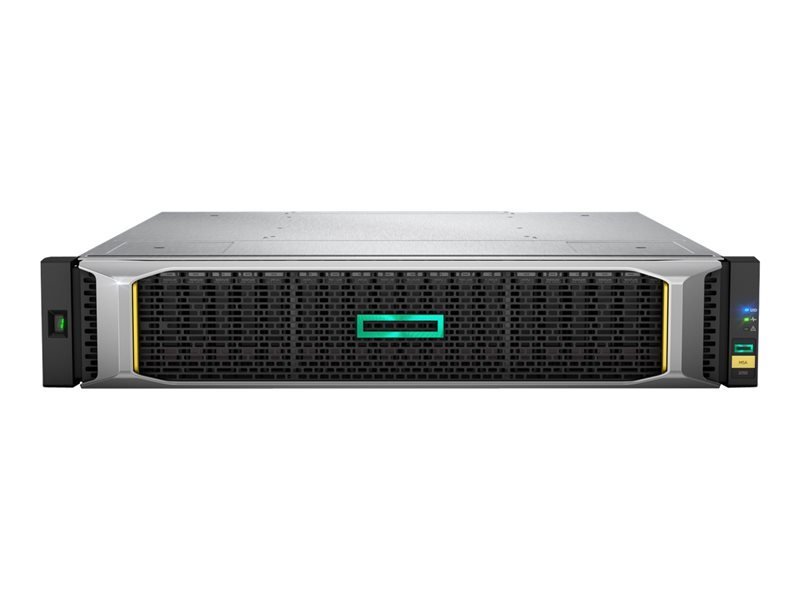

HPE MSA 2052 SAS Dual Controller SFF Storage

QuickFind: 826946 Mfr part code: Q1J31A
  • 1.6 TB
  • 24 bays (SAS-2)
  • SSD 800 GB x 2
  • Rack-mountable
  • 2U
Cashback deal

Cashback deal available with this product until 31st Jan 2019

Claim up to £500 cashback when you purchase a selected MSA fifth generation product. Plus, claim additional cashback when purchased with a qualifying HPE Packaged Support Services Pack (Terms & Conditions Apply) Click here to learn more

Product Description

HPE MSA 2052 SAS Dual Controller SFF Storage

Looking for seriously simple and affordable flash storage? The HPE MSA 2052 SAN Storage is a hybrid flash system designed for affordable application acceleration for small and remote office deployments. Don't let the low cost fool you it gives you the combination of simplicity,flexibility and advanced features you many not expect in an entry-priced array.

Technical Specification

HPE MSA 2052 SAS Dual Controller SFF Storage

Power

Power Device 2 x internal power supply - hot-plug
Max Supported Qty 2
Power Redundancy Yes
Voltage Required AC 120/230 V - 50/60 Hz
Power Consumption Operational 374 Watt

Dimensions & Weight

Width 44.7 cm
Depth 49.5 cm
Height 8.9 cm
Weight 17.6 kg

Manufacturer Warranty

Service & Support Limited warranty - parts - 3 years

Environmental Parameters

Min Operating Temperature 5 °C
Max Operating Temperature 40 °C
Humidity Range Operating 10 - 90% (non-condensing)
Sound Emission 55 dBA

General

Device Type Solid state / hard drive array
Enclosure Type Rack-mountable - 2U

Chassis

Installed Devices / Modules Qty 2
Supported Devices / Modules Qty 24
Supported Drives SAS-2

Storage

Total Array Capacity 1.6 TB
Max Supported Capacity 614.4 TB
Maximum LUNs 512

Storage Controller

Type 2 x RAID (iSCSI)
Interface Type SAS 6Gb/s
Data Transfer Rate 1.2 GBps
Cache / Buffer Size (Max) 8 GB
RAID Level RAID 1, RAID 5, RAID 6, RAID 10

Hard Drive

Type SSD
Capacity 2 x 800 GB
Features Mixed-Use

Expansion / Connectivity

Expansion Bays 24 (total) / 22 (free) - 2.5" SFF
Interfaces 4 x Ethernet 10Gb (iSCSI) / 16Gb Fibre Channel ¦ 2 x mini-USB 2.0 (management) ¦ 2 x Ethernet 1000Base-T (management) - RJ-45 ¦ 2 x SAS

System Requirements

OS Required HP-UX, SuSe Linux, Apple MacOS X, Microsoft Windows, Red Hat Enterprise Linux, HP OpenVMS, Microsoft Windows Server 2012, VMware ESXi 5.x, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2012 R2 with Hyper-V, VMware ESXi 6.x

Miscellaneous

Features Systems Insight Manager (SIM)
Software Included HPE Advanced Data Services Suite, HPE 3PAR Virtual Copy, HPE MSA Remote Snap Software
Compliant Standards CISPR 22 Class A, CISPR 24, EN55022, GS, EN55024, CCC, FCC Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, KN24, KN22 Class A, EN61000-3-2, EN61000-3-3, CNS 13438 Class A, ICES-003:2004 Class A

Environmental Standards

ENERGY STAR Certified Yes
