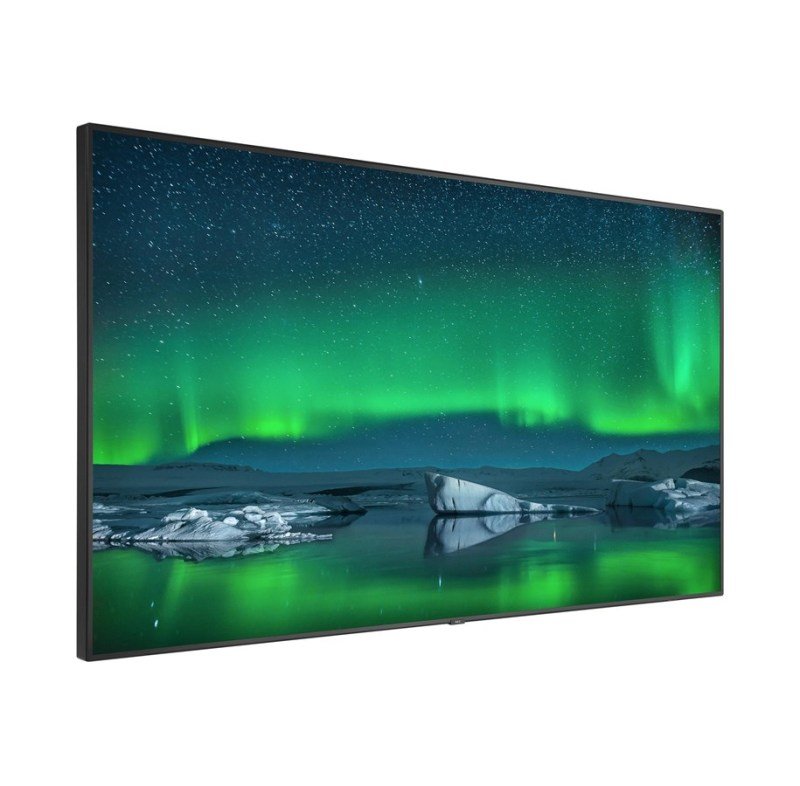

NEC 60004031 86" Large Format Display 4K UHD

QuickFind: 910706 Mfr part code: 60004031
  • Screen Size: 86''
  • Brightness: 350 cd/m2
  • 24/7 Operation System
  • Orientation: Landscape / Portrait

Product Description

NEC 60004031 86" Large Format Display 4K UHD

86" C861Q Display Brand new UHD displays in an aesthetically-focused design allows for seamless integration into any digital signage environment while maintaining the commercial ruggedness necessary for the retail, educational and corporate environments.

Beyond Standard Signage
With industry leading experience in superior design and customer focus, the NEC large C series allow for clear, detailed imagery for unobtrusive digital messaging. New contemporary and slim mechanical design with focused aesthetics allows for the smooth and stylistic integration into any type of environment. Their full metal chassis coupled with real-time temperature sensors and integrated cooling fans maintain the professional quality necessary for commercial environments. With an anti-glare screen and ultra high definition panel, customers can enjoy the perfect image in any circumstance. These displays come equipped with a wide range of the latest connectivity interfaces including three separate HDMI 2.0 interfaces, two separate DisplayPort interfaces and a DisplayPort Out connection to complement the native Ultra High Definition at 60Hz panel. These displays also include expandability options such as the Open Pluggable Specification (OPS) and Raspberry Pi Compute Module slots for source integration directly into the display. The NEC C series boasts 350 cd/m2 brightness that allows for efficient readability in higher ambient light situations and is ideal for 24/7 signage in airports, quick-serve restaurants, and retail.

Scalable Computing Power
Integrated computing options allow for cable free signage for any type of situation. The on-board multimedia player can be utilized for simple signage applications by allowing auto-play off of USB or SD card and content transfer via LAN. For more advanced signage systems, these displays contain an industry first ability to integrate a Raspberry Pi Compute module for near limitless potential and application. Finally, each display adheres to the Open Pluggable Specification that gives the ability to seamlessly integrate a full PC, HDBaseT receiver or other options directly into the unit.

Advanced Heat Management
Monitoring and managing the temperature of each display is crucial to secure reliability and longevity. An industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics, and fan-based technology allows for 24/7 operation, and protects your display investment. Without thermal management, displays can be prone to damaging heat over time. This damaging heat will lower the picture quality and life expectancy of the product. Integrated cooling fans automatically turn on and stay on when high internal temperatures are detected. These will stay on until the heat is properly dissipated and the display remains under proper temperature thresholds.

Technical Specification

NEC 60004031 86" Large Format Display 4K UHD

Stands & Mounts

VESA Mounting Interface 400 x 400 mm, 600 x 400 mm
Stand Optional
Flat Panel Mount Interface 400 x 400 mm, 600 x 400 mm

Display

LCD Backlight Technology Edge-lit LED - local dimming
Viewing Angle 178 degrees
Viewing Angle (Vertical) 178 degrees
LCD Display Technology IPS
Resolution 3840 x 2160
Display Format 4K UHD (2160p)
Image Aspect Ratio 16:9
Frame Rate & Enhancement Technology 60 Hz Refresh Rate
Coating 28% haze
Image Contrast Ratio 1200:1
Brightness 350 cd/m²
Response Time 8 ms
Commercial Features SNMP support, detachable logo, KeyGuide
Features TileMatrix (10 x 10), Open Pluggable Specification slot, auto tiling function, automatic alarm e-mails, Crestron Connected Compatible, Expansion Slot, DICOM support, NaViSet Administrator 2, AMX NetLinx support, PJLink, Raspberry Pi Compute Module Compatible, OmniColor, designed for 24/7 operation, 12-bit Look Up table, ASCII Control Commands, Display Browser Control, emergency notification

General

Commercial Use Yes - digital signage
HDR Technology Hybrid Log-Gamma (HLG)
Energy Class Class G
Power Consumption (On mode) 210 W
Product Type LED-backlit LCD flat panel display
Power Consumption SDR (On mode) 210 kWh/1000h
Energy Consumption per Year 372 kWh
Diagonal Class 86"
HDR Capable Yes
HDR Format HLG10
TV Tuner No tuner
TV Tuner Presence No
Sensors Ambient light sensor (ALS), temperature sensor, NFC sensor
Video Interface HDMI
HDMI Ports Qty 3 ports
PC Interface DisplayPort
Modes Portrait mode, landscape mode, Eco mode
Design Slim Design
Dimensions Without stand
Width 192.8 cm
Depth 7.4 cm
Height 109.9 cm
Weight 57.8 kg

Remote Control

Type Remote control

Audio System

Speakers 2 x main channel speaker - 10 Watt
Speaker System 2 speakers
Output Power / Total 20 Watt
External Speakers Amplifier Power (Total) 30 Watt

Environmental Standards

TCO Certified TCO Certified Displays 8, TCO Certified Edge Displays

Media Player

Supported Video Formats MPEG-4, WMV, MOV, FLV, MPG
Supported Audio Formats MP3, WAV
Supported Pictures Formats JPG, PNG
Supported Memory Cards microSDHC
USB Port Yes
USB Ports Qty 1

Connections

Connector Type 3 x HDMI ¦ 2 x DisplayPort input ¦ Audio input ¦ 2 x LAN ¦ Remote control ¦ RS-232 ¦ USB 2.0 downstream ¦ 2 x USB 2.0 ¦ USB 2.0 upstream ¦ DisplayPort output ¦ Audio output ¦ PoweredUSB

Miscellaneous

Cables Included DisplayPort cable ¦ HDMI cable
Compliant Standards CSA, UL, TUV GS, VCCI, cUL, SASO, VESA DPMS, FCC, CEC, EMC Class B, EAC, IP5X, IP2X

Power

Power Device Power supply
Power Consumption Stand by 0.5 Watt
On / Off Switch Yes

Manufacturer Warranty

Service & Support Limited warranty - 3 years ¦ Limited warranty - backlight - 3 years

Dimensions & Weight Details

Dimensions & Weight Details Panel without stand - 192.8 cm x 7.4 cm x 109.9 cm x 57.8 kg

Environmental Parameters

Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 20 - 80%

Video Features

Supported Computer Resolutions 1920 x 1080, 3840 x 2160, 4096 x 2160, 1920 x 2160
