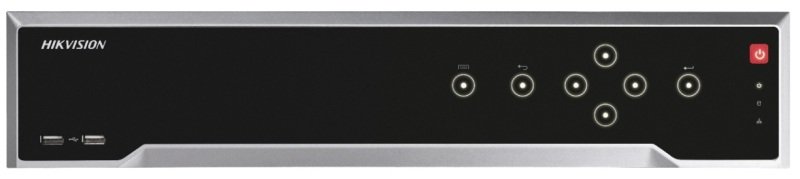

Hikvision Pro Series 16 Channel 1.5U 4K NVR

QuickFind: 990958 Mfr part code: DS-7716NI-I4(B)
  • Up to 16 IP cameras can be connected
  • Supports H.265+/H.265/H.264+/H.264 formats
  • Up to 32 MP HD live view/storage/playback
  • Supports Thermal/fisheye/people counting/heatmap/ANPR

Product Description

Hikvision Pro Series 16 Channel 1.5U 4K NVR

Video and Audio

  • IP video input: 16-ch Up to 12 MP resolution
  • Video resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
  • Incoming/outgoing bandwidth: 160 Mbps 256 Mbps
  • HDMI output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA output: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • CVBS output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Audio output: 1-ch, RCA (Linear, 1 KΩ)
  • Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1 k Ω)



Decoding

  • Decoding format: H.265/H.265+/H.264/H.264+/MPEG4
  • Recording resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous playback: 16-ch
  • Capability: 2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)



Network

  • Remote connections: 128
  • Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Network interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces



Hard disk

  • SATA: 4 SATA interfaces for 4HDDs
  • Capacity: Up to 8TB capacity for each HDD



External interface

  • Serial port: 1 RS-485 (half-duplex), 1 RS-232
  • USB interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm in/out: 16/4



General

  • Power: ≤80 W
  • Power supply: 100 to 240 VAC
  • Consumption (without HDD) : ≤20 W
  • Working temperature: -10 to +55º C (+14 to +131º F)
  • Working humidity: 10 to 90 %
  • Dimensions (W × D × H) : 445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
  • Weight (without hard disk) : ≤ 5 kg (11 lb)
  • Chassis: 19-inch rack-mounted 1.5U chassis
